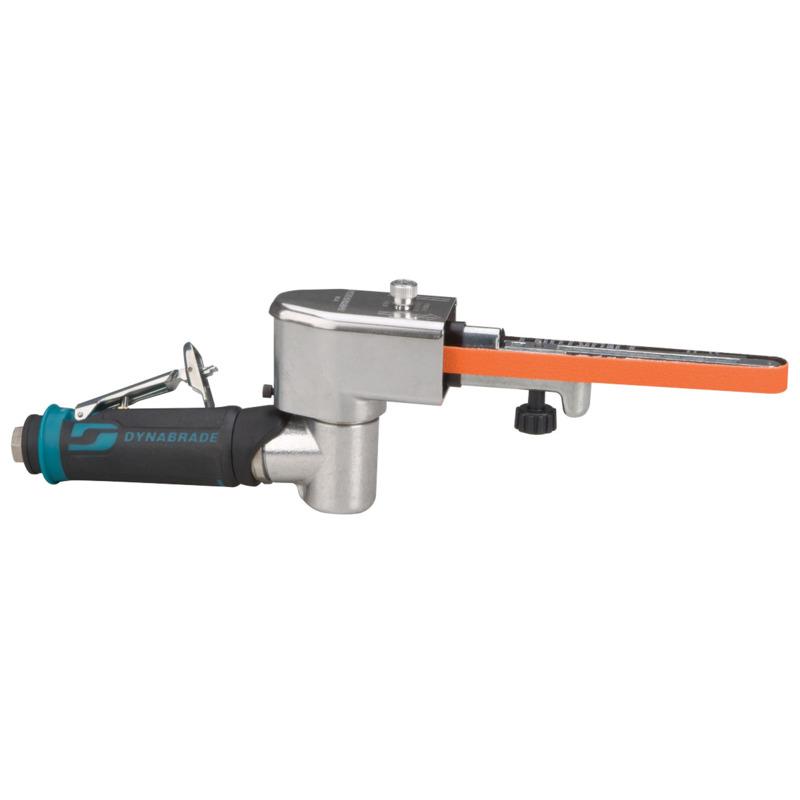

Dynafile II Abrasive Belt Tool
.4 hp, 7 Degree Offset, 25,000 RPM, Front Exhaust, for 1/8"-3/4" W x 18" L (3-19 mm x 457 mm) Belts
-
.4 hp Dynafile II adds a lightweight, compact variation to Dynabrade?s famous Abrasive Belt Tool line. Includes 11203 Contact Arm, for coated abrasive belts 1/2" wide x 18" long.
-

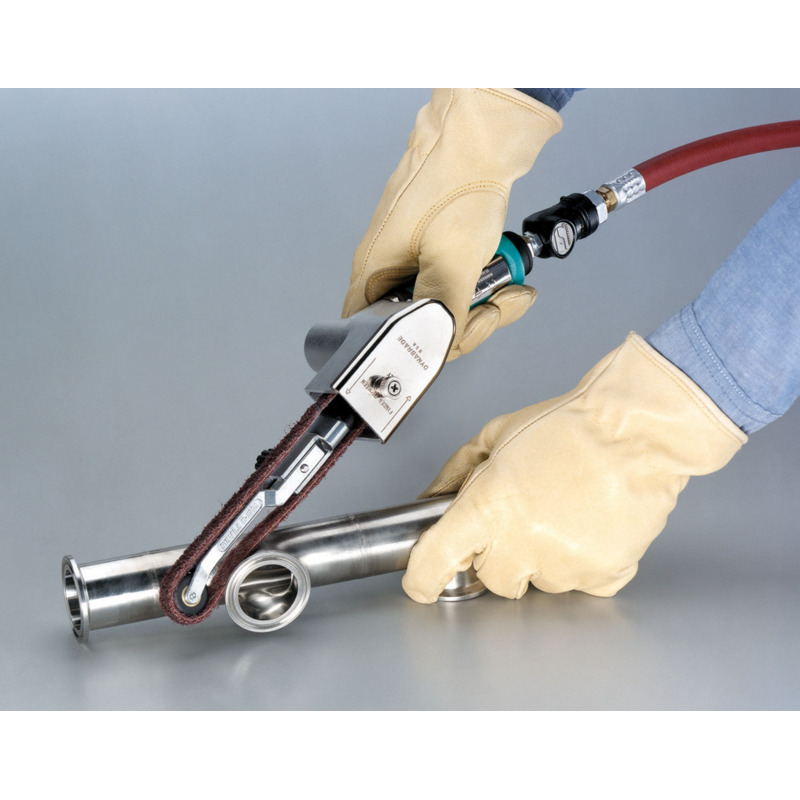

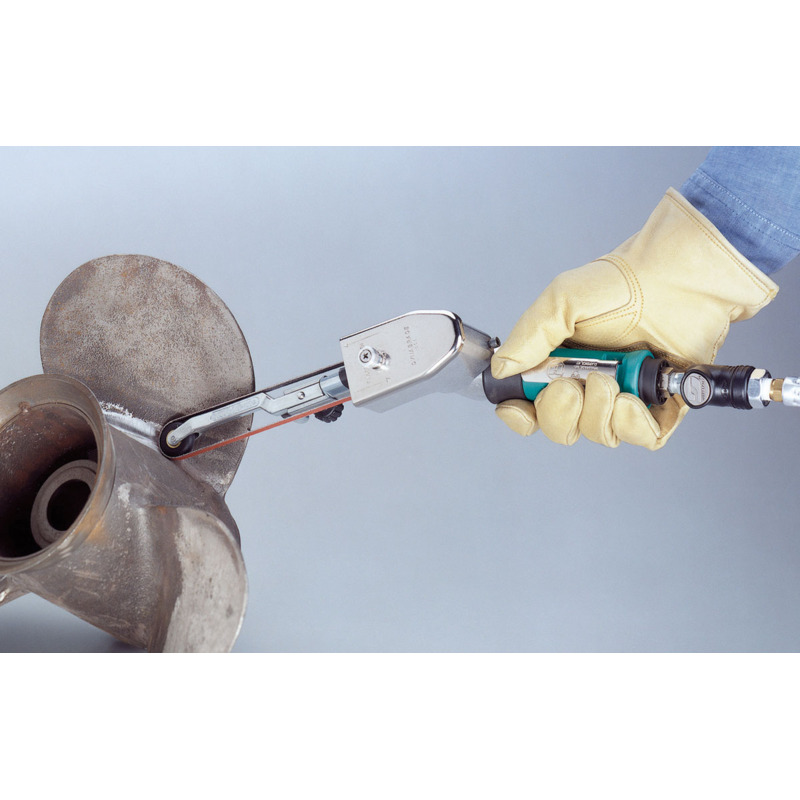

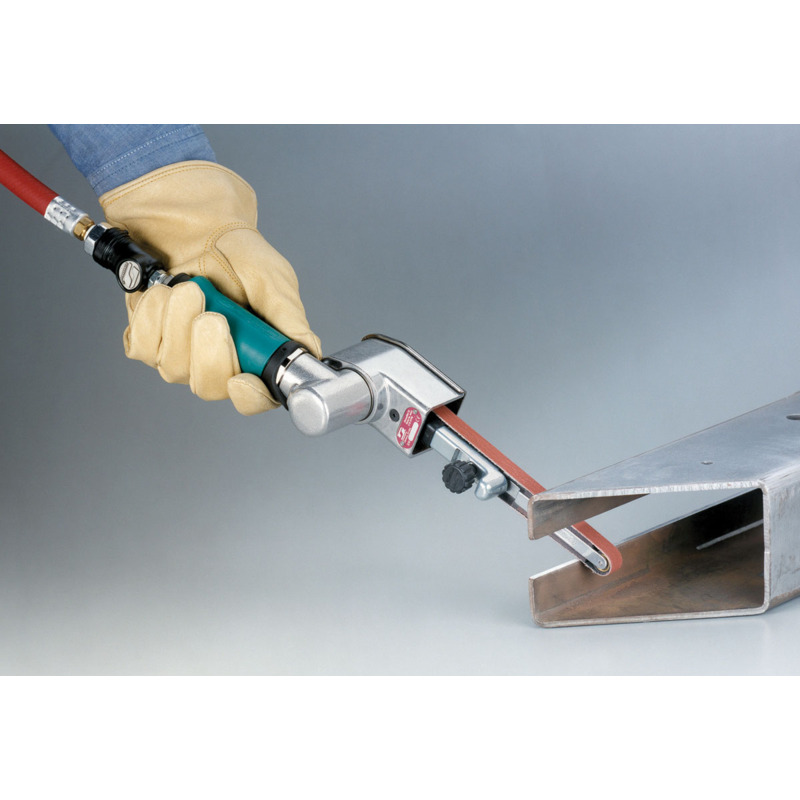

Grind, deburr, blend, finish and polish. Grind from contact wheel or platen pad; finish and polish using slack of belt. For use on metal, plastic, fiberglass, composites, glass and more.
-
Compact, low profile housing allows easy access in tight spots and previously inaccessible areas. Grinding head pivots 360 degrees for additional flexibility. Ergonomic 7 degree offset handle.
-
Lightweight tool design minimizes operator fatigue and increases efficiency.
-
Belt guard easily detaches for quick abrasive change; simple belt tracking adjustment knob.
| Length (mm) |
356 mm
|
|---|
| Width (mm) |
152 mm
|
|---|
| Air Inlet Thread |
|---|
| Exhaust Type |
|---|
| Height (in) |
4 in
|
|---|
| Height (mm) |
105 mm
|
|---|
| Hose I.D. |
|---|
| hp |
0.4 hp
|
|---|
| Length (in) |
14 in
|
|---|
| Max. RPM |
25000
|
|---|
| Max. SFPM |
5730
|
|---|
| Vacuum Type |
|---|
| Width (in) |
6 in
|
|---|
| Tool Style |
7 Degree Offset
|
|---|
| Weight (kg) |
0.86 kg
|
|---|
| Weight (lb) |
1.9 lb
|
|---|
