Ref : 11476

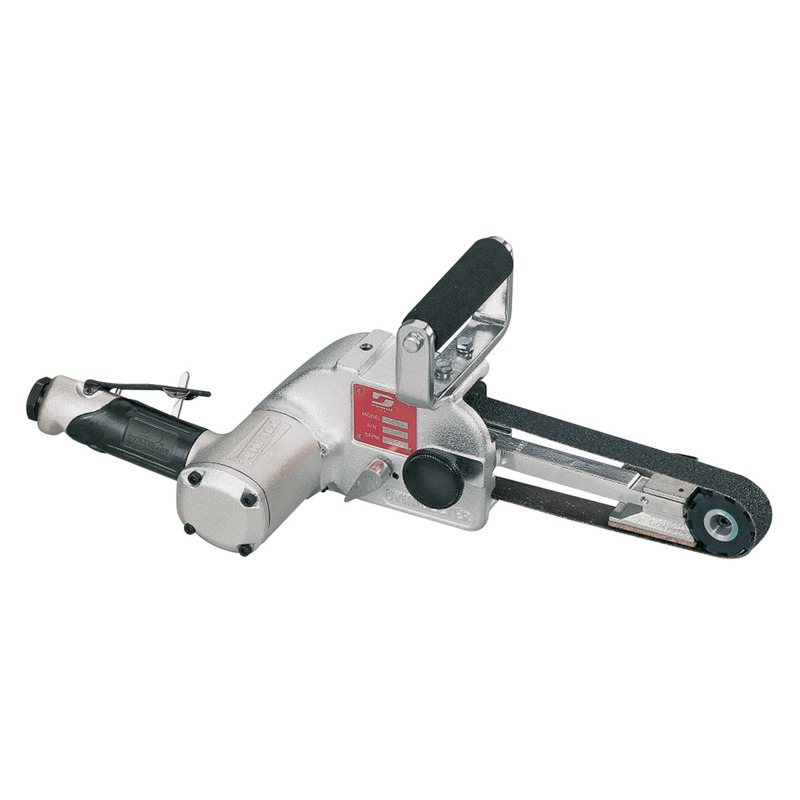

Dynabelter Abrasive Belt Tool, Heavy-Duty

1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1/4"-1" W x 30" L (6-25 mm x 762 mm) Belts

Share

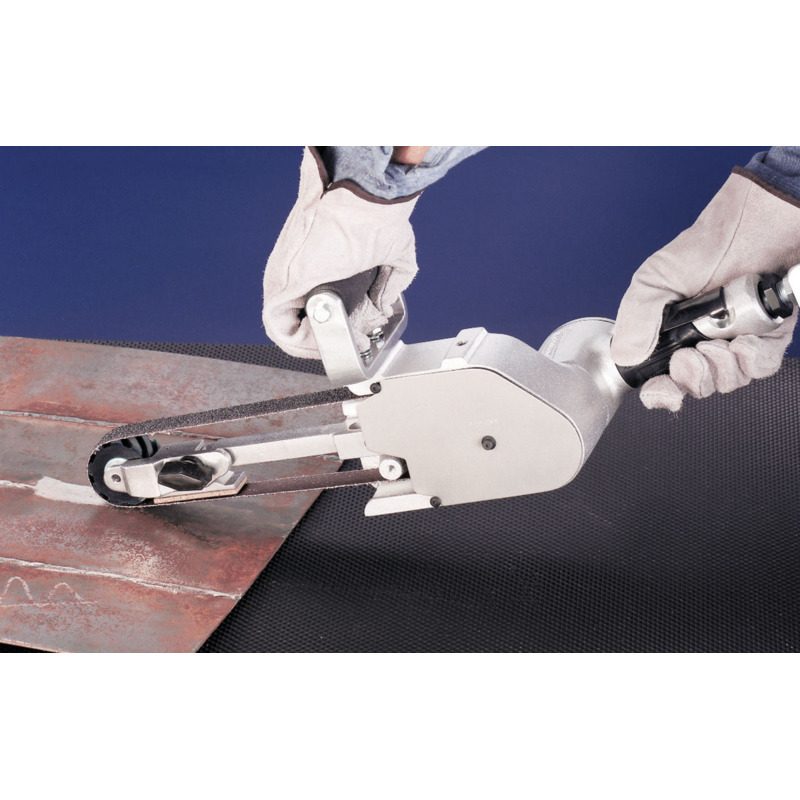

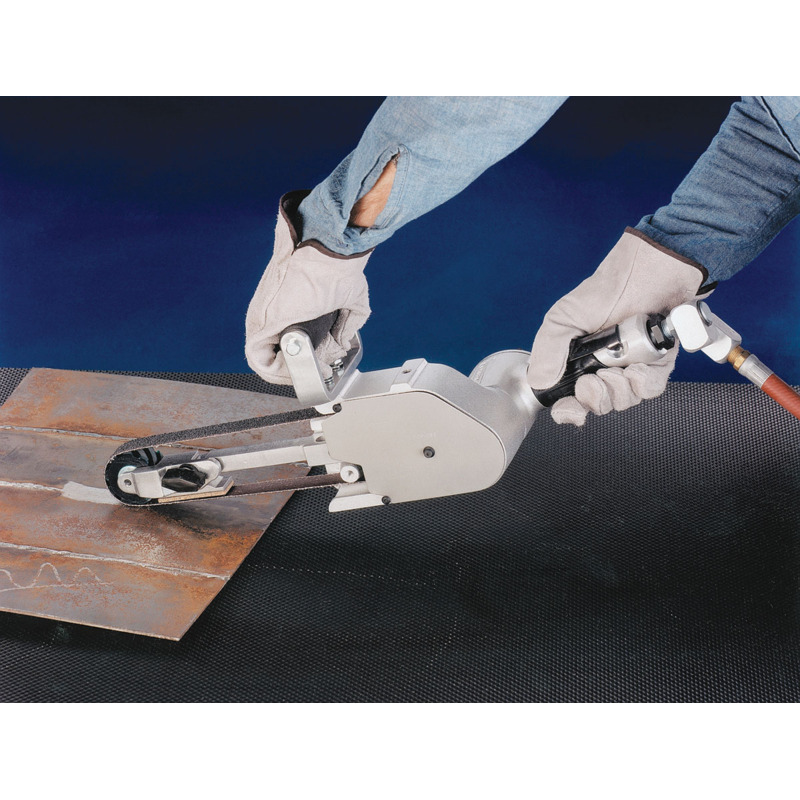

  • For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.

  • Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.

  • Heavy-Duty, 1.2 hp model accepts 1" wide x 30" long abrasive belts.

  • Includes 11681 Contact Arm Assembly, and top control handle.

  • Ideal for use with 3/8" Dynaswivel, and 98265 Coupler/Plug Assembly.

Length (mm)
533 mm
Width (mm)
330 mm
Air Inlet Thread
Exhaust Type
Height (in)
7 in
Height (mm)
184 mm
Hose I.D.
hp
1.2 hp
Length (in)
21 in
Max. RPM
13000
Max. SFPM
4250
Vacuum Type
Width (in)
13 in
Tool Style
Right Angle
Weight (kg)
3.9 kg
Weight (lb)
8.6 lb
Current Manual (Parts Page) PD01.05
Tune-Up Kit Page 96011
Previous Manual (Parts Page) #1 PD94.53
Previous Manual (Parts Page) #2 PD93.37
Literature 00001676
