Ref : 53531

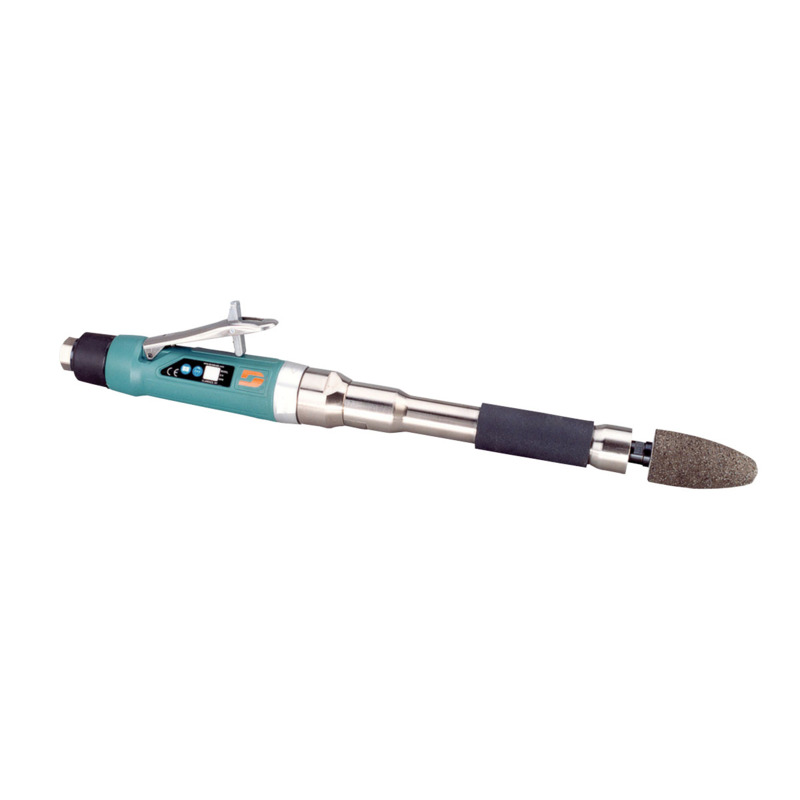

Cone or Plug Grinder (Single Extension)

1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread

Share

  • Includes 3/8"-24 Male Threaded Adapter (53610)

  • Extension Grinders allow operator to extend into work pieces and reach lengthy distances.

  • Extension length of 8-3/8? allows longer reach than competitive models! Extensions are constructed of steel for maximum durability.

  • Designed for minimal vibration. Extensions do not spin during tool use, so continuous tightening is not needed (as with some one-piece shaft-type extensions).

  • Tools can also be fitted with optional Buffing Pads, optional collets and inserts, plus optional Cone/Plug Wheels. (Note: Speed of tool must not exceed maximum operating speed of accessory.)

Length (mm)
467 mm
Width (mm)
127 mm
Air Inlet Thread
Exhaust Type
Height (in)
2 in
Height (mm)
48 mm
Hose I.D.
hp
1 hp
Length (in)
18 in
Max. RPM
18000
Vacuum Type
Width (in)
5 in
Tool Style
Straight Line
Weight (kg)
2.18 kg
Weight (lb)
4.8 lb
Current Manual (Parts Page) PD09.42
Tune-Up Kit Page 96532
Previous Manual (Parts Page) #1 PD07.18
Literature 00001676
