Ref : 50350

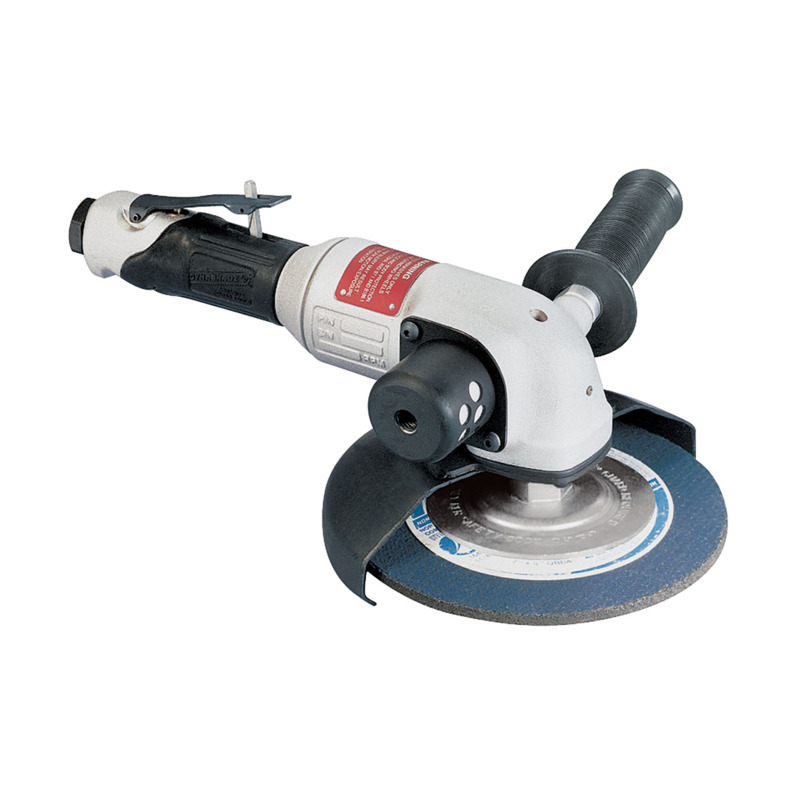

7" (178 mm) Dia. Right Angle Depressed Center Wheel Grinder

1.2 hp, 6,000 RPM, Side Exhaust, 5/8"-11 Spindle Thread

Share

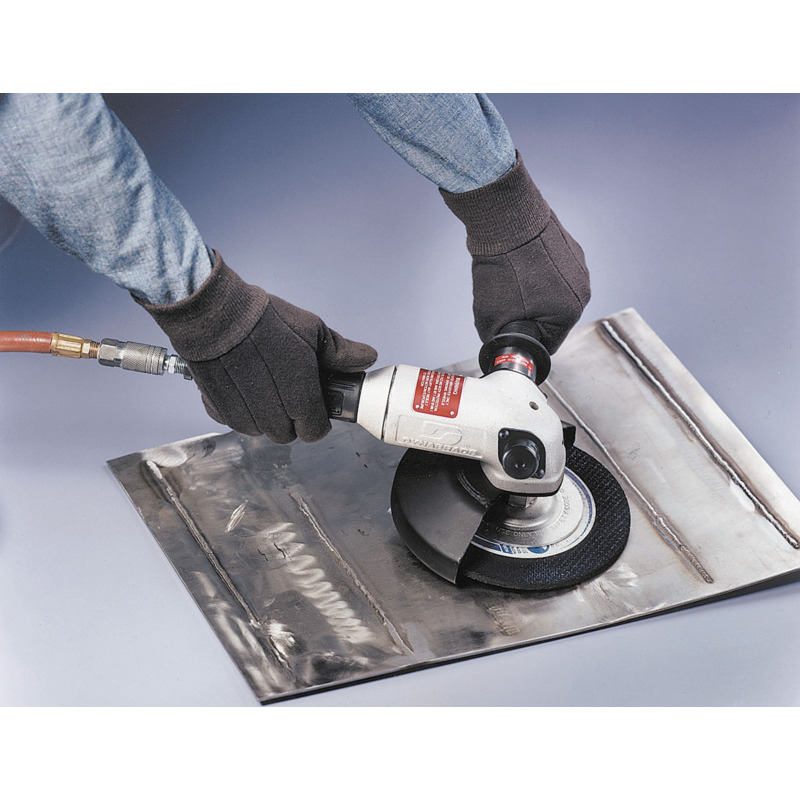

  • Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.

  • 7" Diameter, Right Angle, 1.2 hp, Side Exhaust, 6,000 RPM.

  • Accepts optional 7" diameter Type 27 Depressed Center Wheel, with 7/8" center hole (wheel width of 1/8" to 1/4").

  • Includes 11399 Type 27 Wheel Mounting Adapter Kit, with front and rear flange plus hex wrench.

  • Optional 52190 Guard is available, for left hand operation.

Length (mm)
298 mm
Width (mm)
254 mm
Air Inlet Thread
Exhaust Type
Height (in)
5 in
Height (mm)
117 mm
Hose I.D.
hp
1.2 hp
Length (in)
12 in
Max. RPM
6000
Vacuum Type
Width (in)
10 in
Tool Style
Right Angle
Weight (kg)
3.5 kg
Weight (lb)
7.72 lb
Current Manual (Parts Page) PD22-08
Tune-Up Kit Page 96042
Previous Manual (Parts Page) #1 PD96.20
Literature 00001676
