Ref : 52630

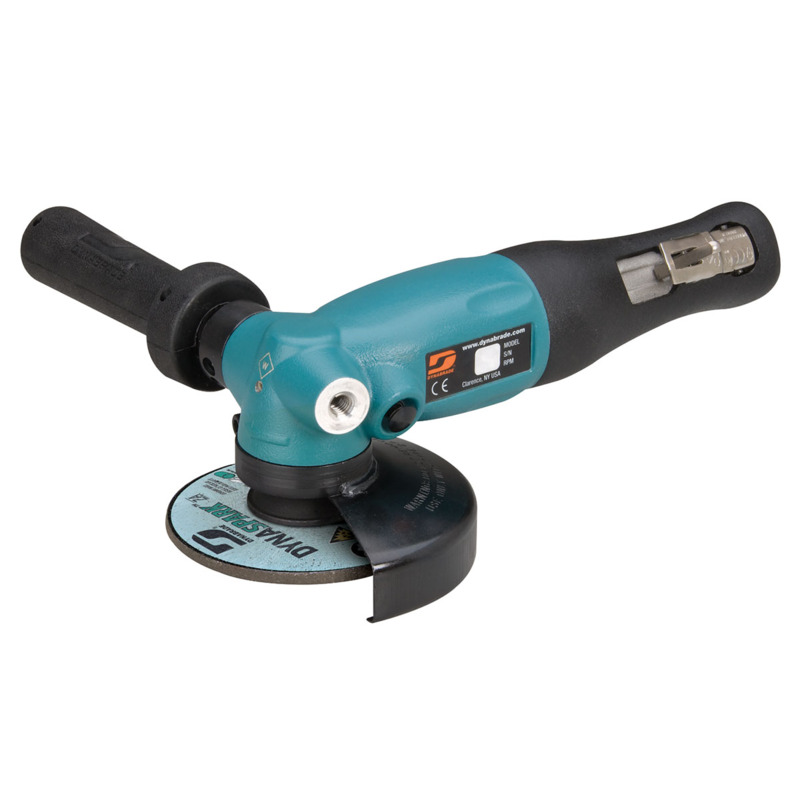

4" (102 mm) Dia. Right Angle Depressed Center Wheel Grinder

1.3 hp, 13,500 RPM, Rotational Exhaust, 3/8"-24 Spindle Thread

Share

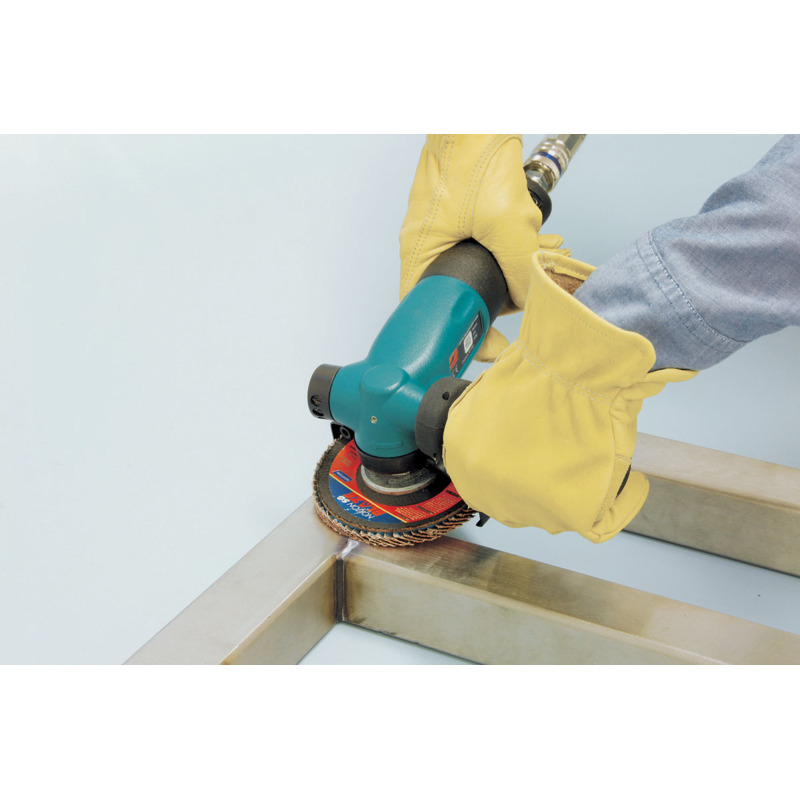

  • 1.3 hp Depressed Center Wheel Grinder is ideal for fast weld and stock removal, heavy deburring, plus rust and scale removal.

  • 13,500 RPM, 3/8"-24 Spindle Thread.

  • Tool accepts optional 4" (102 mm) diameter Type 27 Depressed Center Wheels with 5/8" (16 mm) center hole.

  • Includes Wheel Guard and two Universal Flanges.

  • Vibration Dampening Side Handle included.

Length (mm)
254 mm
Width (mm)
152 mm
Air Inlet Thread
Exhaust Type
Height (in)
3 in
Height (mm)
86 mm
Hose I.D.
hp
1.3 hp
Length (in)
10 in
Max. RPM
13500
Vacuum Type
Width (in)
6 in
Tool Style
Right Angle
Weight (kg)
2.18 kg
Weight (lb)
4.8 lb
Current Manual (Parts Page) PD07.38R
Tune-Up Kit Page 96100
Previous Manual (Parts Page) #1 PD07.38
Literature 00001676
