Ref : 54793

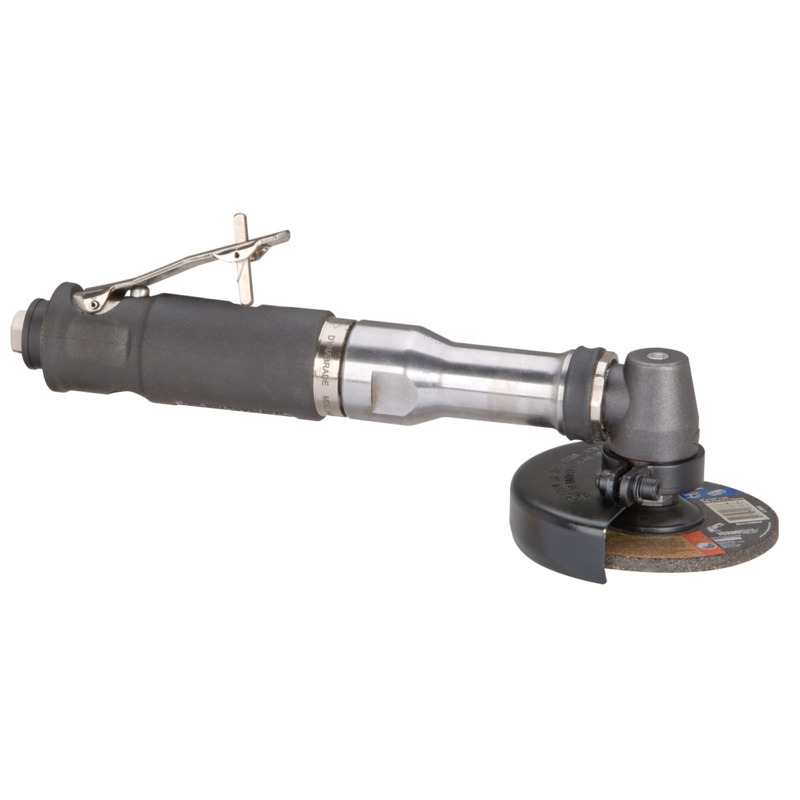

4" (102 mm) Dia. Extended Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 13,500 RPM, Steel

Share

  • Model accepts optional 4" (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8" (10 mm) center hole; wheel width of 1/8" to 1/4" (3 mm to 6 mm).

  • Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

  • Adjustable wheel guard provides maximum operator protection.

  • Steel housings offer increased durability! Model includes steel right angle housing.

  • Extension design allows longer reach on work-piece, and two-hand control for added comfort.

Length (mm)
297 mm
Width (mm)
178 mm
Air Inlet Thread
Exhaust Type
Height (in)
3 in
Height (mm)
78 mm
Hose I.D.
hp
0.7 hp
Length (in)
12 in
Max. RPM
13500
Vacuum Type
Width (in)
7 in
Tool Style
Right Angle
Weight (kg)
1.91 kg
Weight (lb)
4.2 lb
Current Manual (Parts Page) PD11.18
Literature 00001676
