Ref : 65752

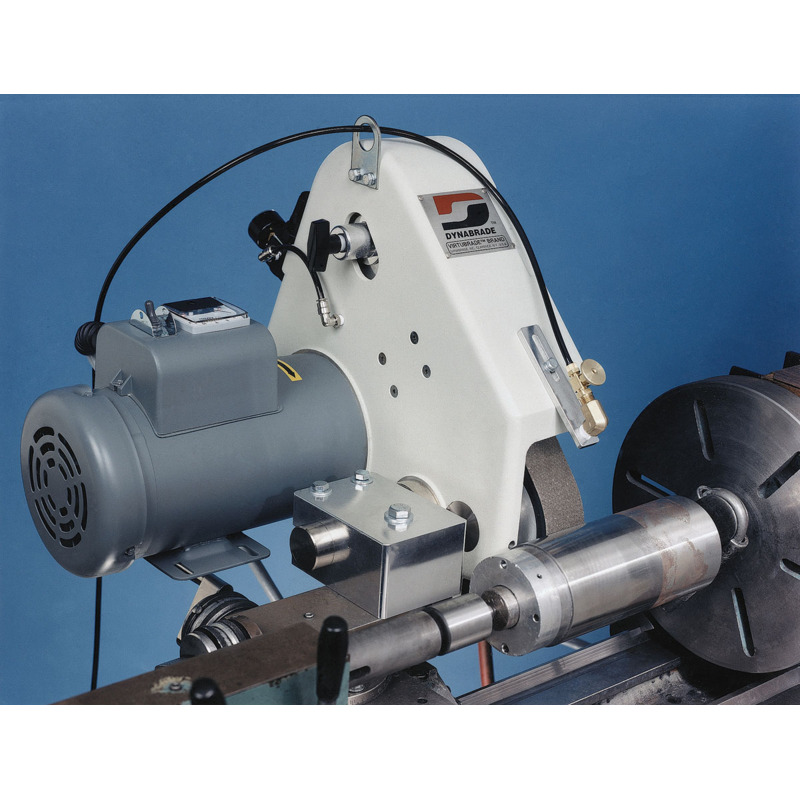

2" x 48" (51 mm x 122 cm) Electric Variable Speed Tool Post Grinder

3 hp, Wet, 220 V (AC), 3 Phase, 50/60 Hz, 2,500-10,500 SFPM

Share

  • Mounts to Standard Lathes, for Applications from Grinding to Superfinishing. Model features air-powered belt tensioning.

  • Each model includes variable speed rate motor. Digital display shows operating speed, with keypad adjustment to desired speed, even as the tool is in operation.

  • Easily accessible belt tracking and tensioning adjustments. Coolant nozzle with adjustable flow valve. 90 durometer, fixed 66640 Contact Wheel is standard.

Length (mm)
483 mm
Width (mm)
610 mm
Air Pressure [Bar]
90
Frequency [Hz]
50
60
Height (in)
18 in
Height (mm)
457 mm
hp
3 hp
Length (in)
19 in
Max. RPM
3450
Width (in)
24 in
Voltage
240
Weight (kg)
48.99 kg
Weight (lb)
108 lb
Current Manual (Parts Page) PD98.88
