Ref : 65014

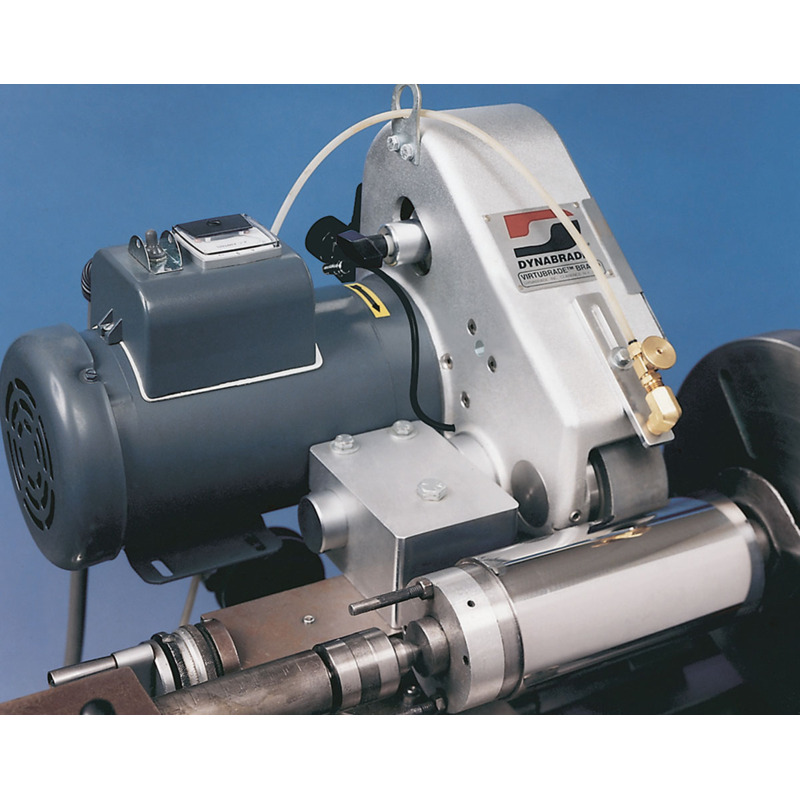

2" x 36" (51 mm x 914 mm) Electric Tool Post Grinder

2 hp, 3,450 RPM, Wet, 230 V (AC), 1 Phase, 60 Hz, 4,500 SFPM

Share

  • Mounts to Standard Lathes, for Applications from Grinding to Superfinishing. Each model includes 90 durometer, 65338 Contact Wheel (4" dia. x 2" wide, standard smooth face).

  • Includes corrosion-resistant parts, coolant nozzle with adjustable flow valve and coolant drip pan.Unit has Water-tight on/off switch. Built-in ammeter measures load.

  • Rigidly mounts to lathe compound for close tolerance work. Model features manual belt tensioning lever.

Length (mm)
406 mm
Width (mm)
508 mm
Frequency [Hz]
60
Height (in)
14 in
Height (mm)
343 mm
hp
2 hp
Length (in)
16 in
Max. RPM
3450
Max. SFPM
4500
Width (in)
20 in
Voltage
240
Weight (kg)
40.37 kg
Weight (lb)
89 lb
Current Manual (Parts Page) PD14.10
